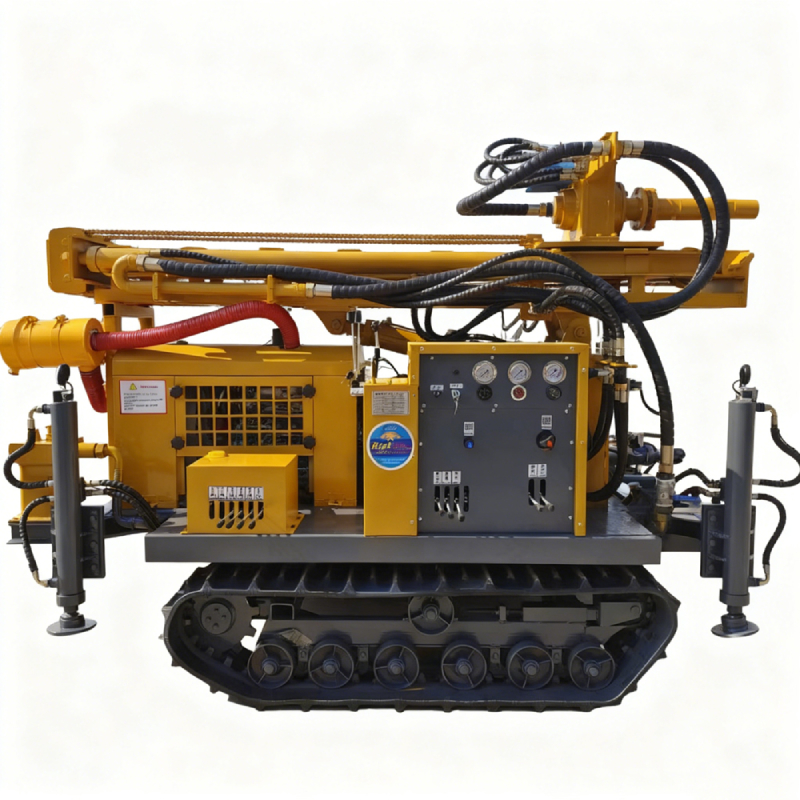

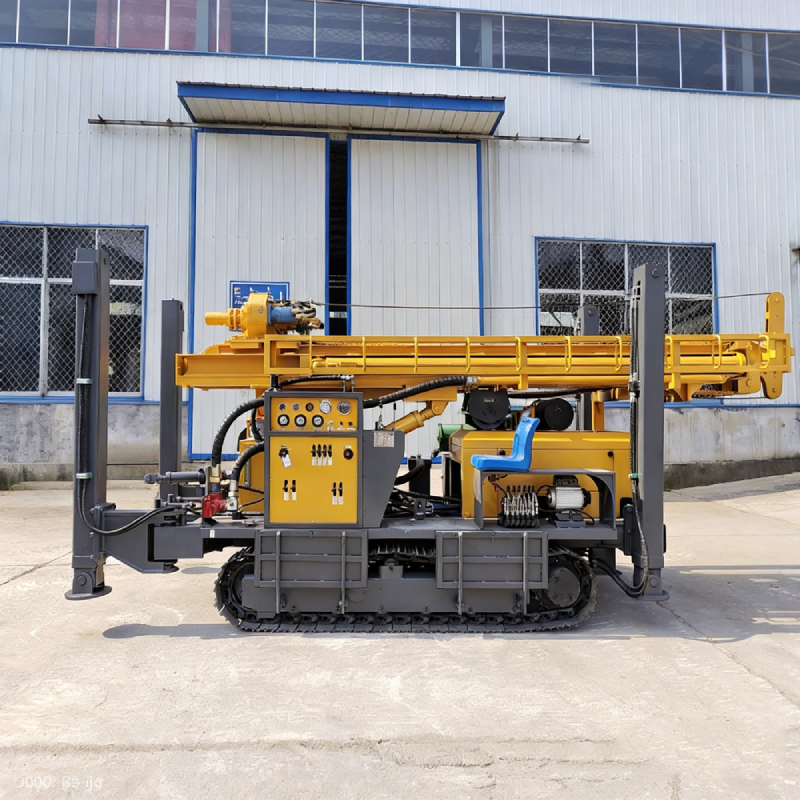

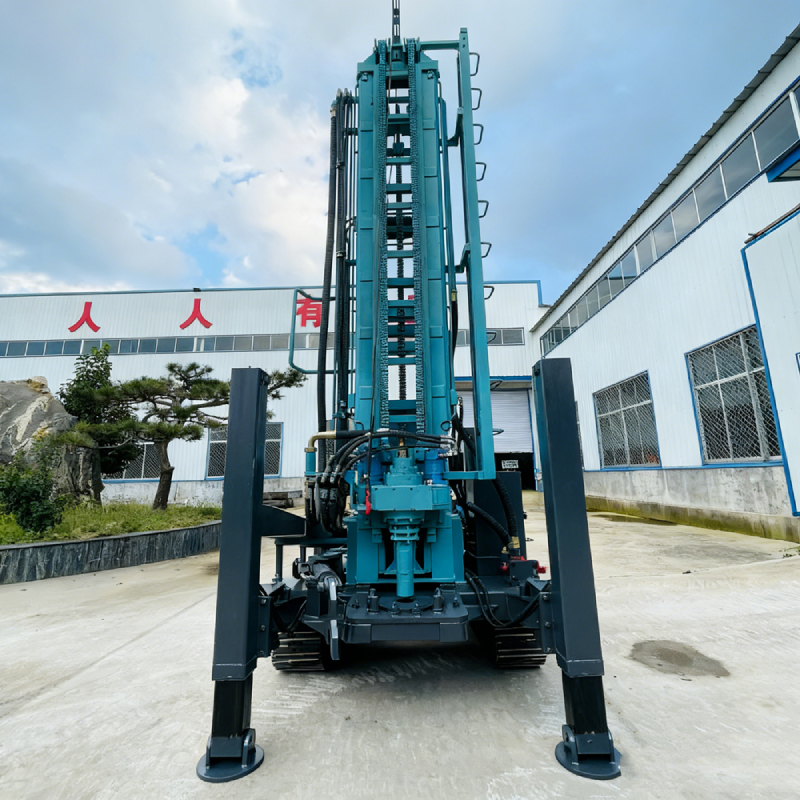

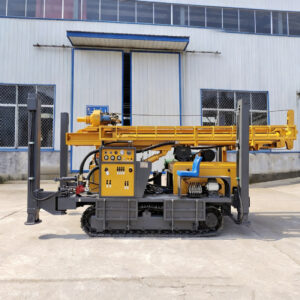

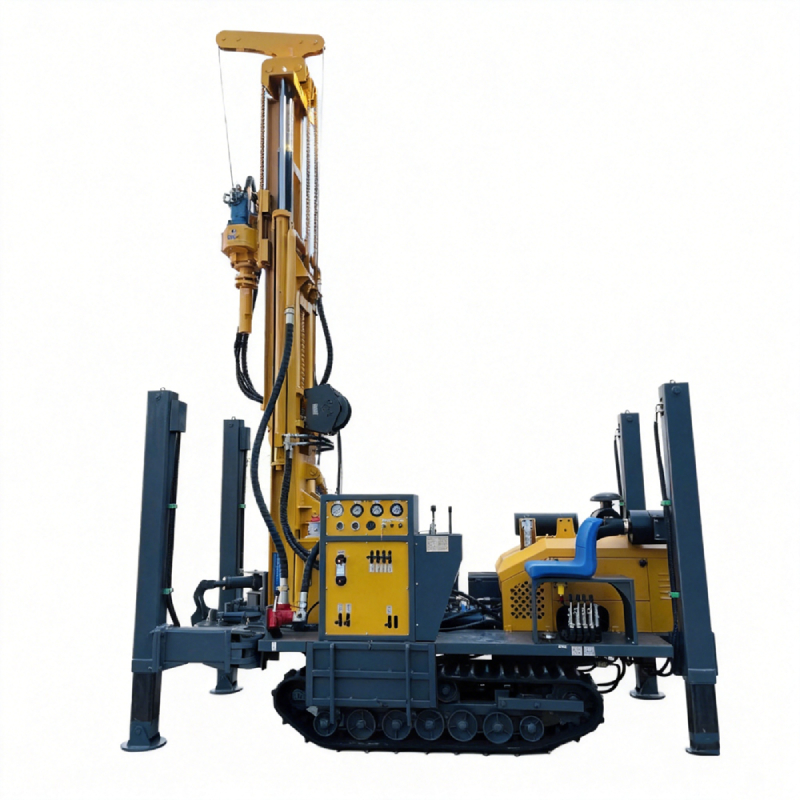

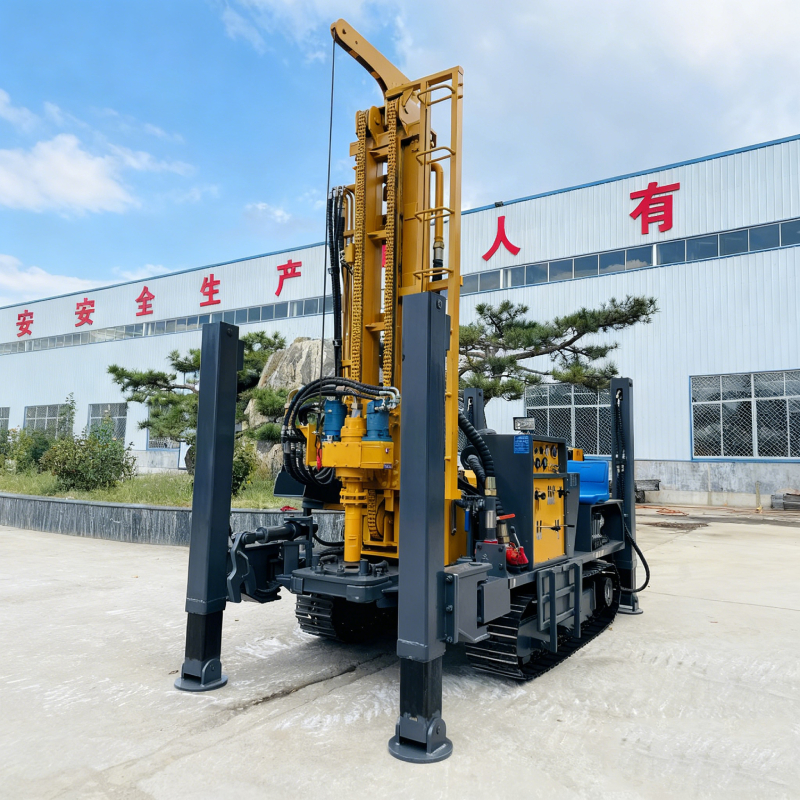

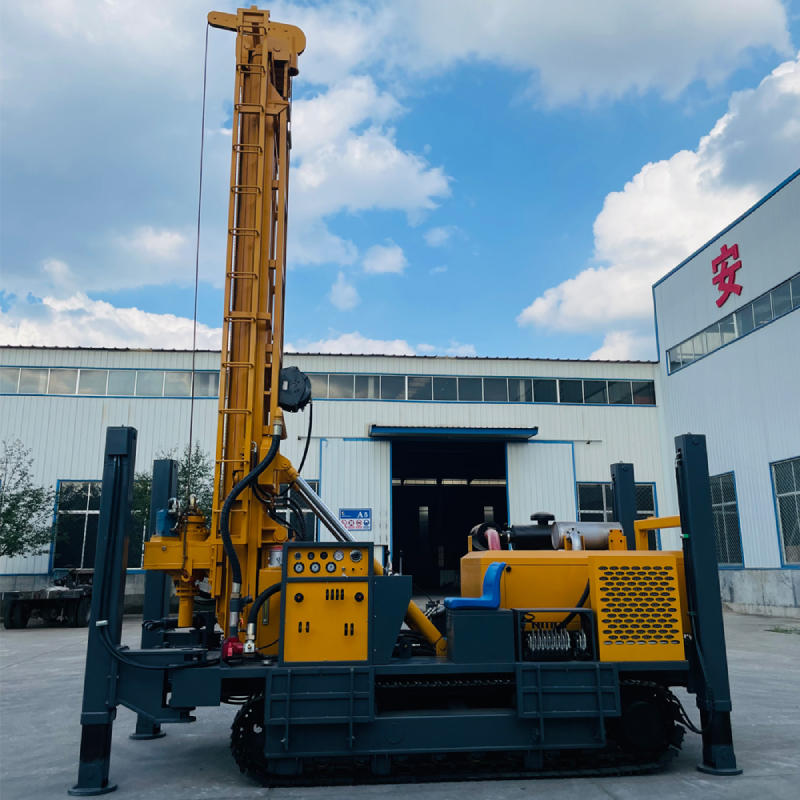

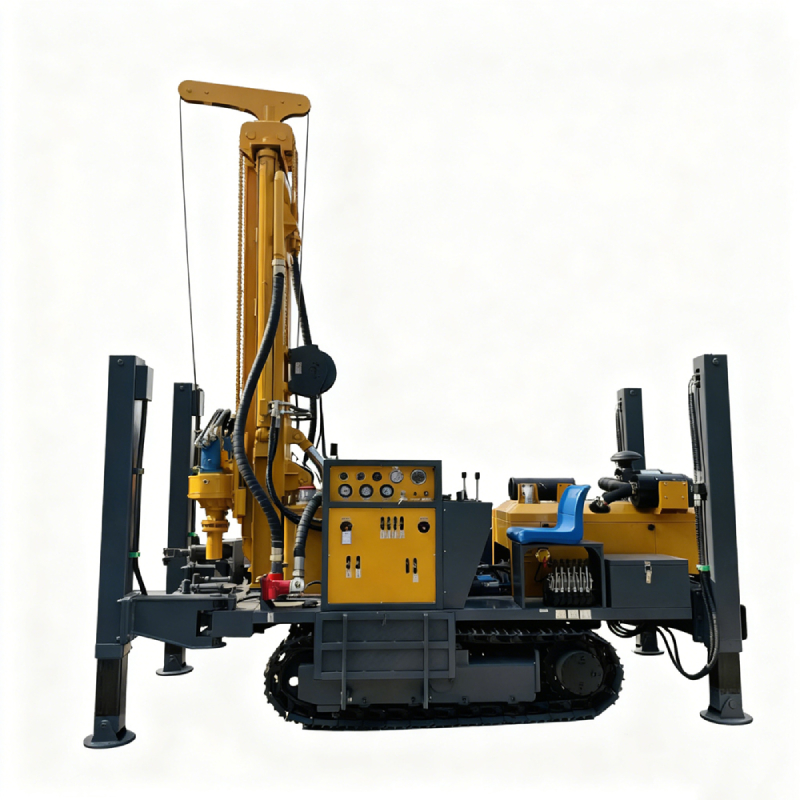

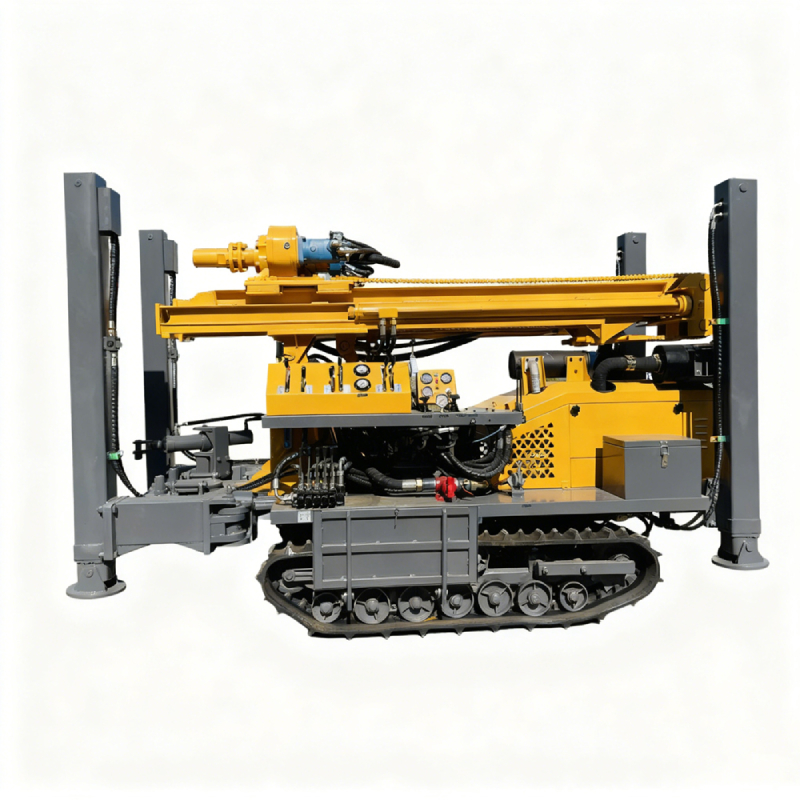

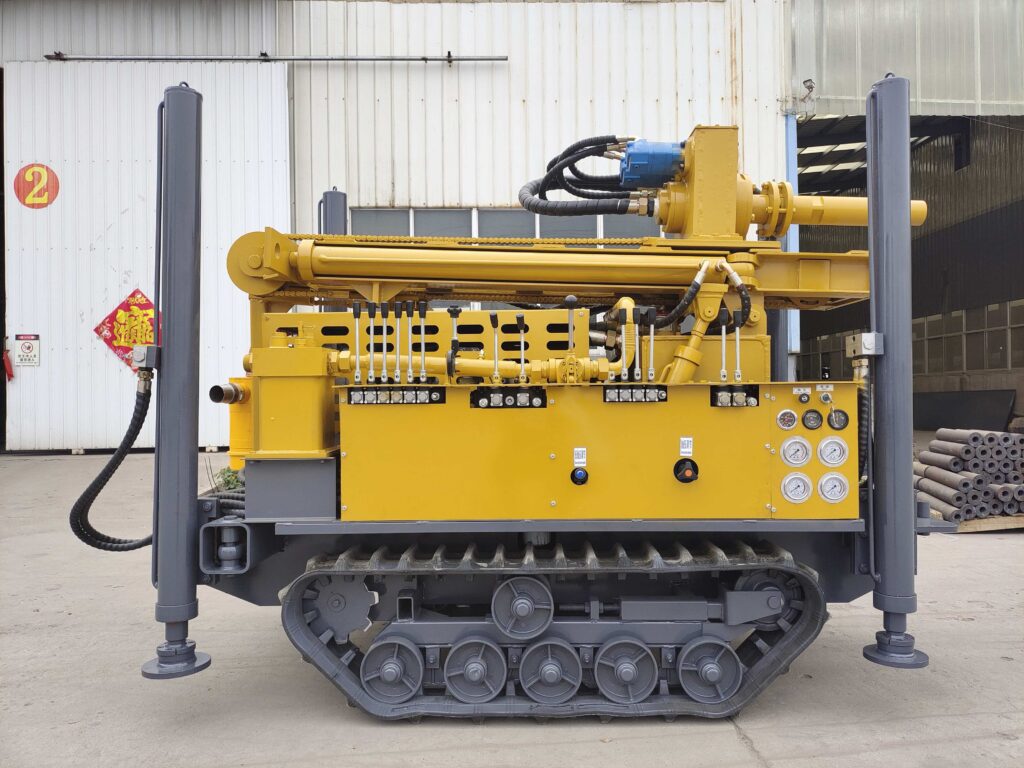

Crawler Water Well Drilling Rig
The ZD Series water well drilling rig is a lightweight, high-efficiency, multi-purpose drilling solution. It is ideally suited for water wells, irrigation systems, geothermal projects, and exploration boreholes. With superior performance in mountainous and hard-rock formations, it delivers reliable results in the most demanding water engineering applications.
Water well drilling rigs specialize in drilling all kinds of water supply wells for rural domestic water, farm irrigation, aquaculture and industrial production. They are also fit for engineering dewatering wells, ground source heat pump wells and geothermal hot spring wells, and can conduct hydrogeological survey, drought emergency well drilling, mine drainage and general civil borehole work, applicable to rural, construction, mining and geothermal engineering projects.
The ZD Series water well drilling rig is a lightweight, high-efficiency, multi-purpose drilling solution. It is ideally suited for water wells, irrigation systems, geothermal projects, and exploration boreholes. With superior performance in mountainous and hard-rock formations, it delivers reliable results in the most demanding water engineering applications.
Application of Crawler Water Well Drilling Rig
Water well drilling rigs specialize in drilling all kinds of water supply wells for rural domestic water, farm irrigation, aquaculture and industrial production. They are also fit for engineering dewatering wells, ground source heat pump wells and geothermal hot spring wells, and can conduct hydrogeological survey, drought emergency well drilling, mine drainage and general civil borehole work, applicable to rural, construction, mining and geothermal engineering projects.
List item text
Drill auger drill
Down the hole hammer drill
Mud forward circle drill
ODEX tools(casing pipe following) drill with DTH hammer
Medium reverse circle drill
Technical of Crawler Water Well Drilling Rig
| Model | ZD-150 | ZD-180 | ZD-200 | ZD-260 | ZD-300 | ZD-400 |
| Drilling diameter | 100~350mm | |||||
| Drilling Depth | 150M | 180M | 200M | 260M | 300M | 400 |
| Engine Power | 42Kw | 55Kw | 58Kw | 76Kw | 85Kw | 92Kw |
| Swing Torque | 3000~4200N.m | 3200~4600N.m | 3400~4700N.m | 4000~5300N.m | 5700~7500N.m | 6500~9000N.m |
| Swing Speed | 45~70rpm | 45~70rpm | 45~70rpm | 45~70rpm | 40~70rpm | 66~135rpm |
| Lifting Force | 10T | 12T | 13T | 15T | 18T | 24T |
| Dimension | 3.8*1.5*2.25M | 3.95*1.63*2.25M | 3.95*1.75*2.25M | 4.05*1.75*2.25M | 4.1*2*2.26M | 6*2*2.55M |
| Weight | 4000Kg | 4500Kg | 4700Kg | 5700Kg | 6800Kg | 9200Kg |
