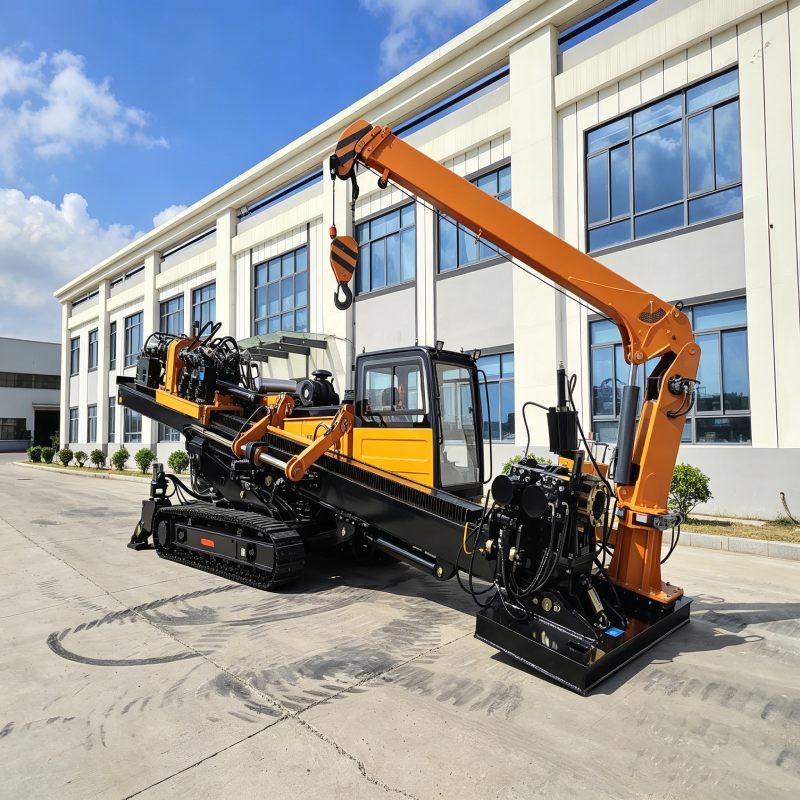

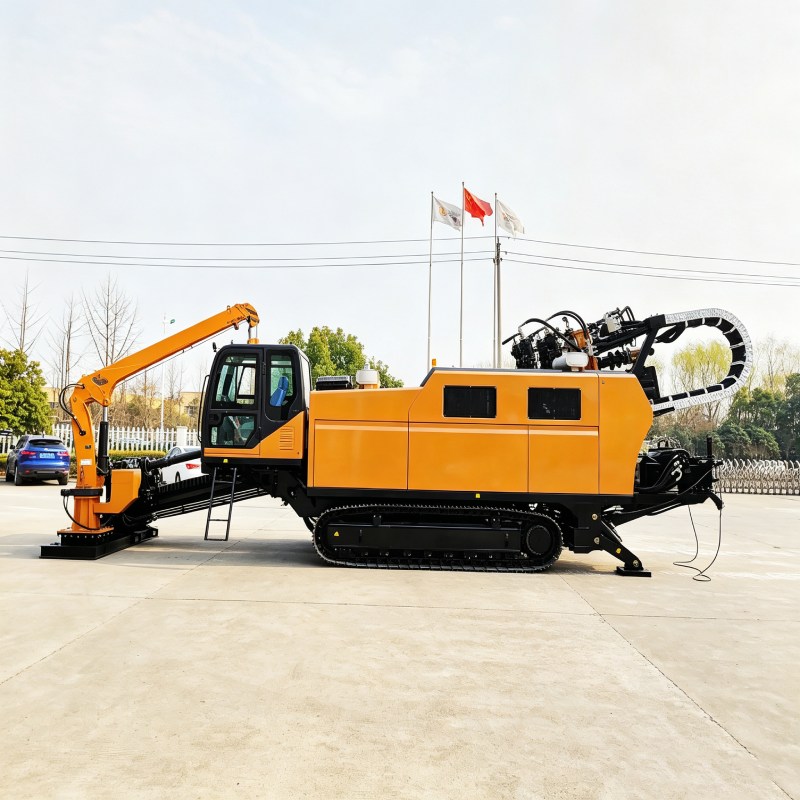

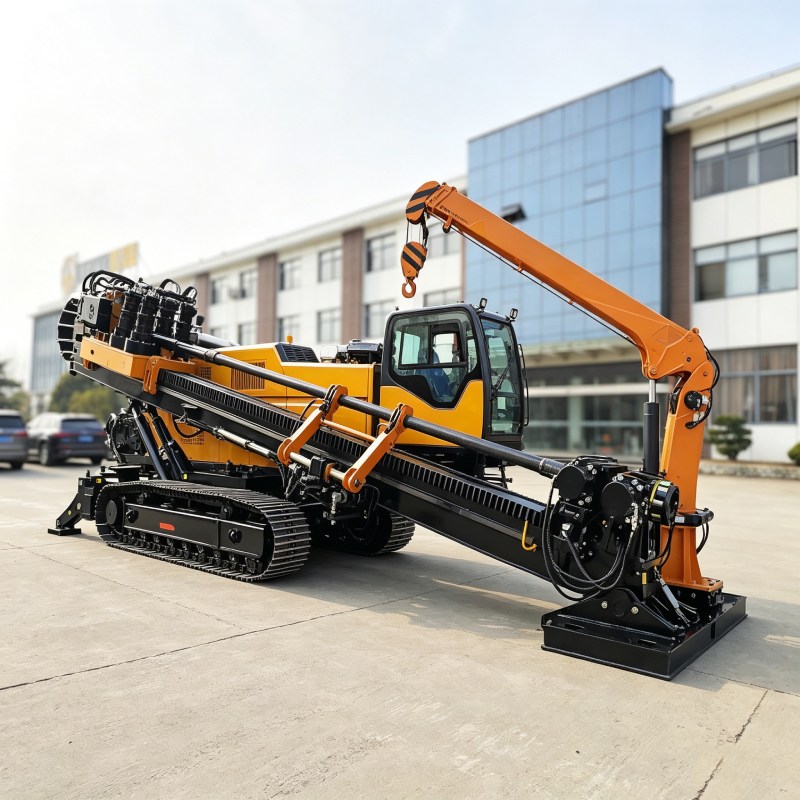

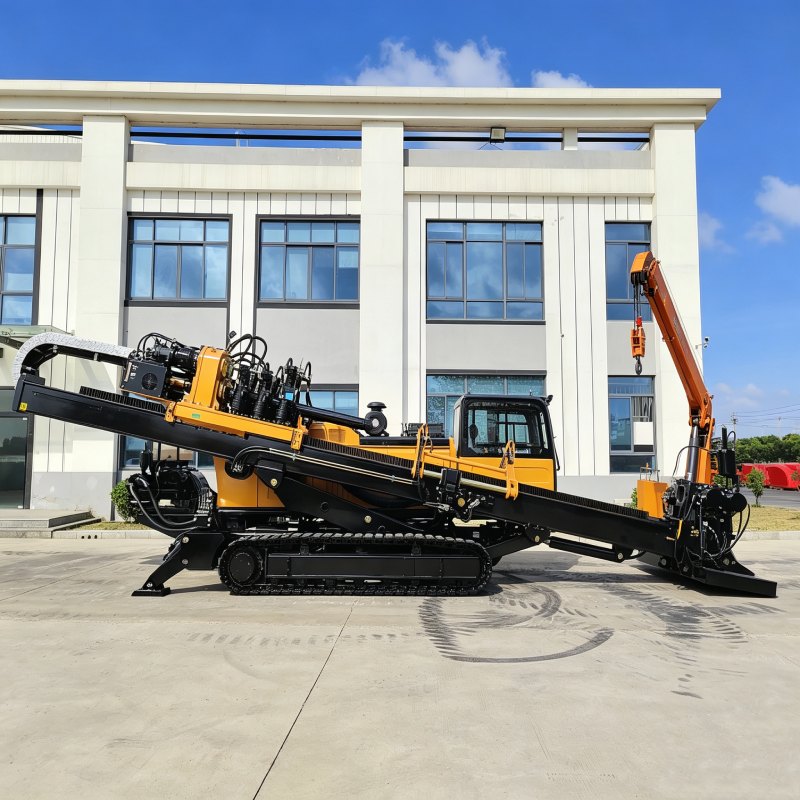

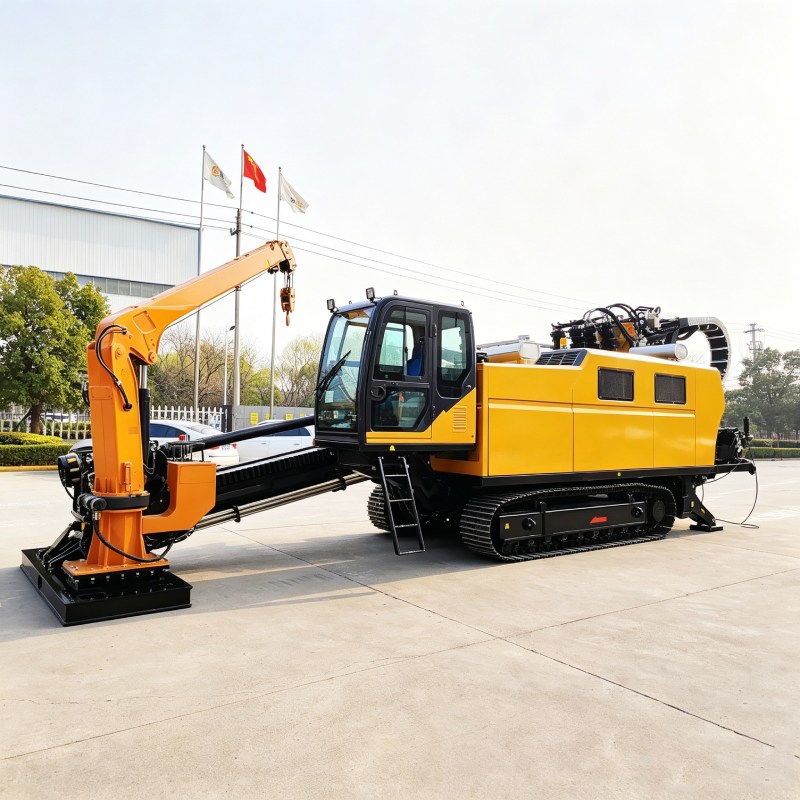

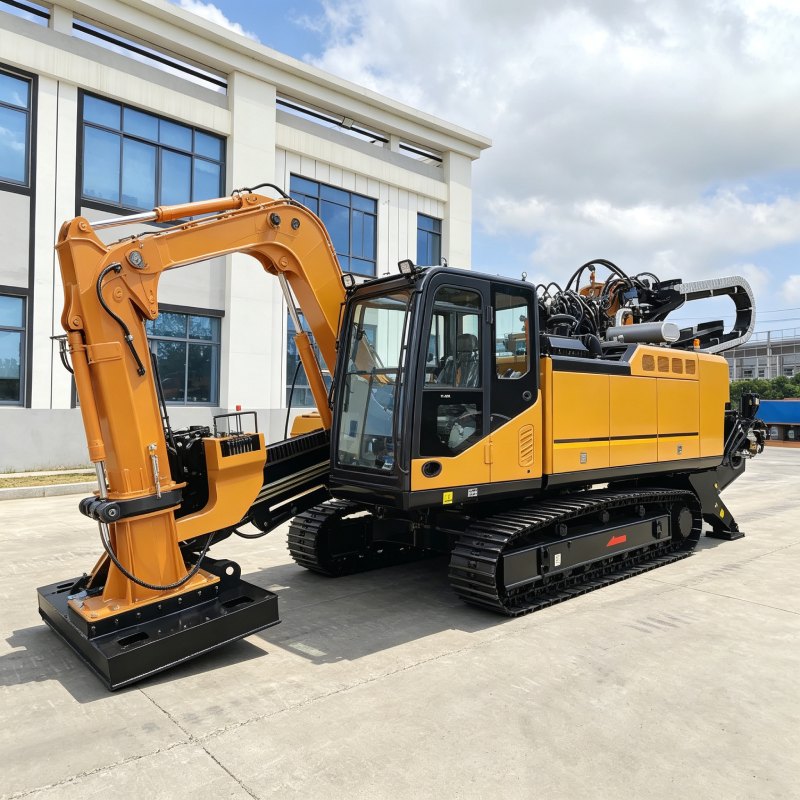

Horizontal Directional Drilling Rig
A Horizontal Directional Drilling (HDD) rig is a trenchless construction machine used to install various underground utilities—including pipelines, cables, and conduits—without excavating the ground surface. This technology combines directional drilling techniques from the oil and gas industry with traditional pipeline construction methods, delivering fast, accurate, and cost-effective underground installations.
HDD rigs typically consist of five core systems: the drilling rig system (the main drilling unit and rotary table), power system (hydraulic power source and generator), steering system (computer-monitored guidance for precise drilling), mud system (mixing tank, pump, and circulation lines), and drilling tools and auxiliary equipment (drill pipes, bits, reamers, and pulling heads).
Application of Horizontal Directional Drilling Rig
The reverse cycle drilling rig is a crawler chassis loading,full hydraulic drive,power head type drilling rig, which is a drilling equipment suitable for vertical or inclined drilling, suitable for the following process methods:
Utility Pipelines : Water supply and distribution lines, Natural gas and coal gas pipelines, Oil and petroleum transportation pipelines & Sewage and drainage systems.
Telecommunications & Power: Fiber optic cable networks, Power transmission and distribution cables & Communication lines.
Crossing Applications: Crossing beneath highways and railways, River and waterway crossings, Underneath buildings and urban structures, Through historical and protected areas &Within congested city streets and residential areas.
Technical of Reverse Cycle Drilling Rig
| Model | ZD-250 | ZD-320 | ZD-430 |
| Drilling diameter | ≤800mm | ≤900mm | ≤1350mm |
| Drilling Depth | ≤300M | ≤400M | ≤650M |
| Max. Thrust & Pullback Force | 255/375KN | 350/300KN | 430/860KN |
| Max Torque | 8100N.m | 12600N.m | 19000N.m |
| Engine Power | 110Kw | 153Kw | 179Kw |
| Mud Pump Max Flow | 250L/min | 320L/min | 450L/min |
| Dimension | 6.95*2.16*2.4M | 7.3*2.15*2.25M | 7.3*2.25*2.27M |
| Weight | 9200Kg | 9700Kg | 13000Kg |
